Atempo (Miria)

Atempo is a leading software vendor providing data management solutions to companies worldwide. Miria is an open solution from Atempo that provides high-performance backup, movement, synchronization, and archiving for large data sets from heterogeneous sources. It delivers vendor-agnostic solutions for petascale NAS and cloud environments and has five pillars:

• Analytics
• Migration
• Data backup
• Data archiving
• Synchronization

For more information, visit https://www.atempo.com/solutions/hybrid-nas-storage-synchronizations/#

Advantages of Miria with Storj

The combination of Miria and Storj provides complete flexibility for cloud management at a competitive cost. Miria handles data archiving and organization from primary storage to the Storj cloud S3 infrastructure; large data sets can be hosted, stored, replicated, and recovered at any time through Storj's platform.

Security integrations in Miria ensure that data on Storj is kept safe, while metadata archives allow large datasets to be easily accessible and manageable. Manual and automatic archiving capabilities in Miria simplify access and economize storage costs. Miria meets any requirements: data volumes, different file sizes and formats, storage technologies, and workflows.

Integration

Miria integrates with Storj cloud storage through the S3 protocol. The Miria server orchestrates the Miria data movers, which integrates with Storj through the S3 protocol. Conversely, any other storage platform also integrates with the data movers, thus integrating data movement and management from heterogeneous sources. The Miria solution is fully scalable - simply add another Miria Data mover as needed.

To integrate Miria with Storj, you must create S3 credentials for Miria in Storj and pass them to the Miria server through the Miria web interface.

Requirements

• An active Storj account, or you can sign up here https://storj.io/signup?partner=atempo
• A bucket for Miria in your Storj instance
• An instance of Miria 2021 or newer
• Access to the Miria Web UI

Request a demo of Miria or contact Atempo for pricing.

Set up Storj

Create an Account

To begin, you will need to create a Storj account.

Navigate to https://storj.io/signup?partner=atempo to sign up, or log in https://storj.io/login if you already have an account.

Create a Bucket

Once you have your Storj account you can create a bucket for your data to be stored in.

1. Navigate to Browse on the left side menu.

2. Click on the New Bucket button.

3. Assign the bucket an easily identifiable name, such as "my-bucket".

4. Optional: Enable Object Lock (required for immutability in many applications).

   • If you enable Object Lock, you can also set a default retention period using either Governance or Compliance Mode

5. Optional: Enable Object Versioning (note that this will be enabled by default if Object Lock is enabled)

6. Click Create bucket

Generate S3 credentials

Storj has an Amazon S3 compatible API and you'll need generate S3 credentials to use it. S3 credentials consist of an access key, secret key, and endpoint.

Create S3 credentials in the Storj console:

1. Navigate to Access Keys on the left side menu.

2. Click the New Access Key button.

3. When the New Access dialog comes up, set specifications according to the following guidelines:

   • Name: The name of the credentials (e.g. my-access)
   • Type: S3 Credentials

4. Choose Full Access or Advanced

   • In most cases, you DO NOT want to choose full access.

5. Provide Access encryption Information

   In order to see the data uploaded to your bucket in the Storj console, you must unlock the bucket with the same encryption passphrase as the credentials.

   • Use the current passphrase: this is default option
   • Advanced: you may provide a different encryption phrase either your own or generate a new one.
     • Enter a new passphrase: use this option, if you would like to provide your own new encryption phrase
     • Generate 12-word passphrase: use this option, if you would like to generate a new encryption phrase

6. Select the permissions you want to allow:

   • Read
   • Write
   • List
   • Delete

7. Select the object lock permissions you want to allow

   • PutObjectRetention
   • GetObjectRetention
   • BypassGovernanceRetention
   • PutObjectLegalHold
   • GetObjectLegalHold
   • PutObjectLockConfiguration
   • GetObjectLockConfiguration

8. Choose the buckets you want the access to include:

   • All Buckets
   • Select Buckets

9. Set an expiration

10. Click Create Access to finish creation of your S3 credentials

11. Your S3 credentials are created. Write them down and store them, or click the Download all button. You will need these credentials for the following steps.

Object Lock Permission Details

Integrating Atempo (Miria) with Storj

1. Log into the Miria web UI.

2. Select Infrastructure in the left panel

3. Select Object Storages.

4. Select New Storage Manager.

5. Choose "Storj" or "General Storage" in the Storage Manager Type dropdown list.

6. Click Next.

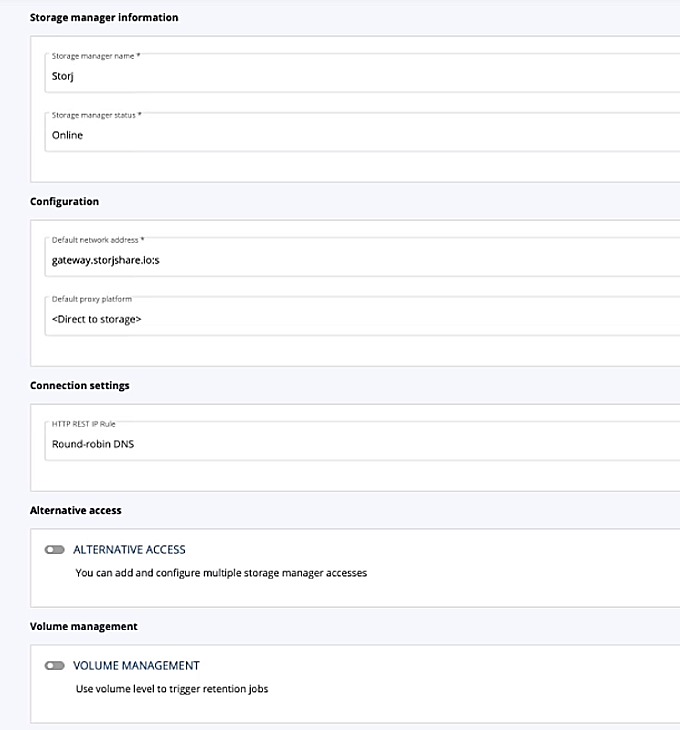

7. Enter a name for your Storage Manager, such as Storj, and the appropriate Storj service URL into the Configuration part.



8. Click Create.

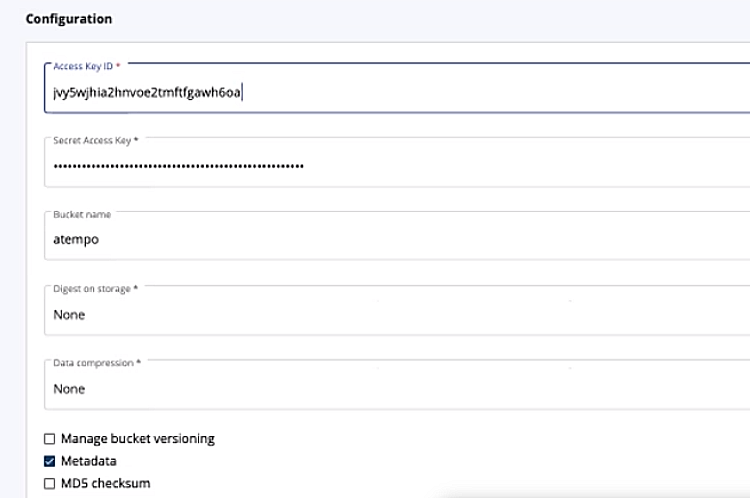

9. Enter the access key in the Access Key ID field and the secret key in the Secret Access Key field with the S3 credentials generated previously.

10. If desired, enable the Data compression checkbox to optimize the size of data stored in the Object Storage.



11. The new Storage Manager Container is ready for data storage.

    You can store backups, archives, tiered data, or synchronized files from primary storage.

12. Create a new project.

13. Configure Start the task and check its progression.

14. Once the task is complete, you should see the files and folders on your Storj account inside my-bucket.
