Rails 7 ActiveStorage Connected to Storj

This guide will show you how to connect ActiveStorage in Rails 7 to Storj (an AWS S3 compatible object storage). You can also look at the source code of this example.

We have a webinar walking you through it, but you can also refer to the steps below:

Prerequisites:

Installed ruby 3.1.2 or later
Installed rails 7.0.4.2 or later
Storj S3 compatiable access and secret key (see Getting started)
A bucket created on Storj (see Create buckets)

Configure ActiveStorage to Storj

Create a new rails app

rails new active-storj

rails new active-storj

Install ActiveStorage

rails active_storage:install

rails active_storage:install

Edit Gemfile, add the aws-sdk-s3 gem and run bundle install

gem "aws-sdk-s3", require: false

gem "aws-sdk-s3", require: false

Edit the rails credentials

rails credentials:edit

rails credentials:edit

Add to the credentials your access key and secret key (see Getting started) under storj:

storj:
  access_key_id: <access_key>
  secret_access_key: <secret_key>

storj:
  access_key_id: <access_key>
  secret_access_key: <secret_key>

Edit config/storage.yml, enter the following to configure ActiveStorage to use Storj.

Be sure to replace the bucket with the one created earlier (see Create buckets)

storj:
  service: S3
  access_key_id: <%= Rails.application.credentials.dig(:storj, :access_key_id) %>
  secret_access_key: <%= Rails.application.credentials.dig(:storj, :secret_access_key) %>
  region: global
  endpoint: https://gateway.storjshare.io
  bucket: active-storj

storj:
  service: S3
  access_key_id: <%= Rails.application.credentials.dig(:storj, :access_key_id) %>
  secret_access_key: <%= Rails.application.credentials.dig(:storj, :secret_access_key) %>
  region: global
  endpoint: https://gateway.storjshare.io
  bucket: active-storj

Edit config/environments/development.rb, change the ActiveStorage service to :storj

config.active_storage.service = :storj

config.active_storage.service = :storj

Use active storage images hosted by Storj

First we'll need a basic app to interact with generated with Rails scaffolding

rails generate scaffold Name name

rails generate scaffold Name name

Edit config/routes.rb set root to "names#index

root "names#index"

root "names#index"

Edit app/models/name.rb to have has_one_attached

class Name < ApplicationRecord
  has_one_attached :main_image
end

class Name < ApplicationRecord
  has_one_attached :main_image
end

Edit app/views/names/_form.html.erb to include a field_field to allow the user to choose a file to upload

<div><%= form.label :main_image %> <%= form.file_field :main_image %></div>

<div><%= form.label :main_image %> <%= form.file_field :main_image %></div>

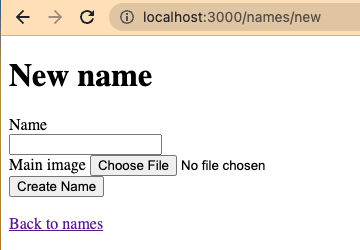

Navigate to http://localhost:3000/names/new and you should see the following

Click "Create Name"

Edit app/views/names/show.html.erb to include <%= image_tag @name.main_image %> to display the image

<p style="color: green"><%= notice %></p>

<%= render @name %> <%= image_tag @name.main_image %>

<div>
  <%= link_to "Edit this name", edit_name_path(@name) %> | <%= link_to "Back to
  names", names_path %> <%= button_to "Destroy this name", @name, method:
  :delete %>
</div>

<p style="color: green"><%= notice %></p>

<%= render @name %> <%= image_tag @name.main_image %>

<div>
  <%= link_to "Edit this name", edit_name_path(@name) %> | <%= link_to "Back to
  names", names_path %> <%= button_to "Destroy this name", @name, method:
  :delete %>
</div>

Edit app/assets/stylesheets/application.css to style the image to fix the size of the screen

img {
  width: 100vh;
}

img {
  width: 100vh;
}

Navigate to http://localhost:3000/names/1 to see your image

Enable direct to Storj upload

Edit config/importmap.rb to include the @rails/activestorage package

pin "@rails/activestorage", to: "https://ga.jspm.io/npm:@rails/activestorage@7.0.4/app/assets/javascripts/activestorage.esm.js"

pin "@rails/activestorage", to: "https://ga.jspm.io/npm:@rails/activestorage@7.0.4/app/assets/javascripts/activestorage.esm.js"

Edit app/javascript/controllers/application.js to initialize the ActiveStorage

import * as ActiveStorage from '@rails/activestorage'

const application = Application.start()
ActiveStorage.start()

import * as ActiveStorage from '@rails/activestorage'

const application = Application.start()
ActiveStorage.start()

Modify app/views/names/_form.html.erb form.file_field to include direct_upload: true

<div>
  <%= form.label :main_image %> <%= form.file_field :main_image, direct_upload:
  true %>
</div>

<div>
  <%= form.label :main_image %> <%= form.file_field :main_image, direct_upload:
  true %>
</div>
