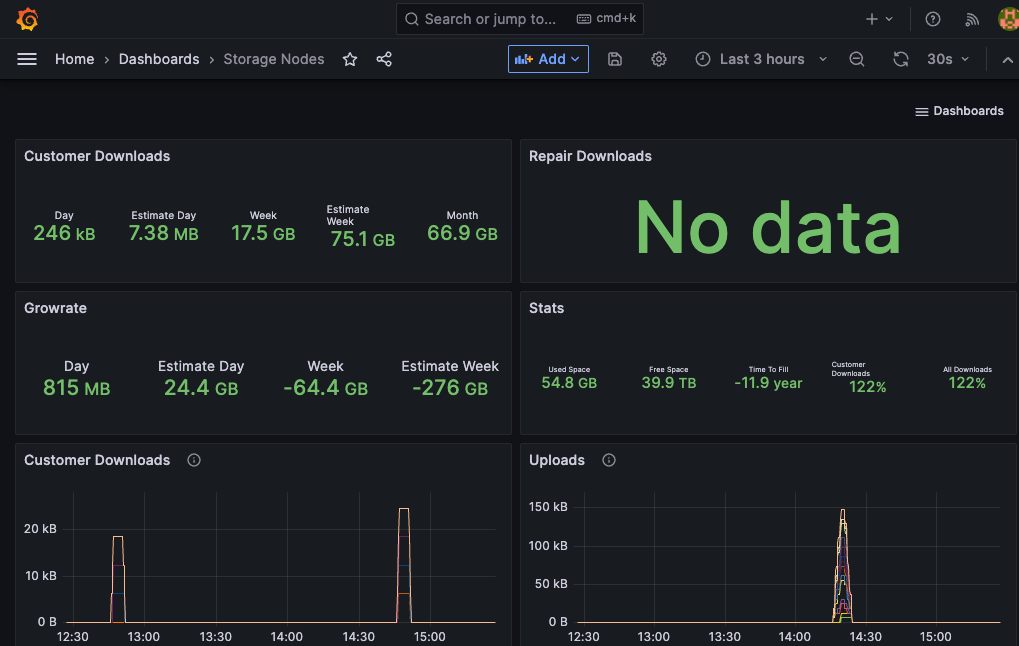

Node Dashboard

This guide assists commercial Storage Node operators in setting up advanced monitoring using Prometheus and Grafana. There are alternative monitoring tools that also will work. Consider the following as guidelines rather than a strict requirement for how to do it.

Prerequisites

• Familiarity with or installed Prometheus
• Familiarity with or installed Grafana

Metrics

Storage nodes have a Prometheus metrics endpoint that can be scraped periodically for better insight on the health of your network.

To enable the endpoint set the STORJ_DEBUG_ADDR or --debug.addr flag for each Storage node (incrementing the port by 1 if multiple nodes are on the same machine).

STORJ_DEBUG_ADDR=127.0.0.1:6000

STORJ_DEBUG_ADDR=127.0.0.1:6000

Visit 127.0.0.1:6000 for an overview page of monitoring capabilities. More specifically, the /metrics endpoint can be viewed for a more specific overview of what is available

Prometheus configuration

Next, create a prometheus.yaml configured to scrape the Storage nodes in your network.

List each Storage Node's debug address and port as targets.

global:
  scrape_interval: 15s

scrape_configs:
  - job_name: 'local-metrics'
    static_configs:
      - targets:
          - host.docker.internal:6000 # if prometheus and node are on the same docker host
          - host.docker.internal:6001
          - 192.168.1.5:6000
          - 192.168.1.5:6001
          - 192.168.1.6:6000
          - 192.168.1.6:6001

global:
  scrape_interval: 15s

scrape_configs:
  - job_name: 'local-metrics'
    static_configs:
      - targets:
          - host.docker.internal:6000 # if prometheus and node are on the same docker host
          - host.docker.internal:6001
          - 192.168.1.5:6000
          - 192.168.1.5:6001
          - 192.168.1.6:6000
          - 192.168.1.6:6001

Run the Prometheus docker container or update your existing Prometheus server config

docker run -p 9090:9090 -v ./prometheus.yaml:/etc/prometheus/prometheus.yml prom/prometheus

docker run -p 9090:9090 -v ./prometheus.yaml:/etc/prometheus/prometheus.yml prom/prometheus

Visit the Prometheus targets (http://localhost:9090/targets) to see if the Storage Nodes are being successfully scraped.

Grafana Dashboard

Once metrics are being successfully gathered, they can be visualized and analyzed with Grafana.

Run the Grafana docker container or add the following to your existing one.

docker run -d --name=grafana -p 3000:3000 grafana/grafana-enterprise

docker run -d --name=grafana -p 3000:3000 grafana/grafana-enterprise

Login to Grafana by visiting http://localhost:3000 (username and password is admin by default).

Connect Prometheus to your Grafana instance

To view the metrics data in Grafana, you'll need to create a new Prometheus data source.

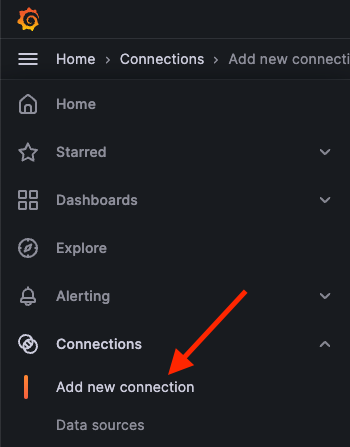

1. Click Add new connection from the left sidebar under connections.

2. Select Prometheus as the data source

3. Enter your Prometheus server URL (e.g. http://localhost:9090) under connections

4. Click Save & test

Add Storage Node Dashboard

1. Navigate to the Dashboards http://localhost:3000/dashboards

2. Click Create Dashboard in the middle of the screen or the New if you already have an existing one

3. Select the Import a dashboard option

4. Paste the JSON from storage-node-grafana.json into Import via dashboard JSON model text area.

5. Click Load and Import to create the Dashboard.

You've successfully setup your Storage node dashboard.
